Loaders

Our diesel LHDs are custom designed to operate in the low profile, narrow vein and mid-seam mass mining operations in both hard and soft rock applications. They are efficiently compact with an optimal operator’s position. The lateral arrangement of the operator seat guarantees optimal views for forward and backward tramming. The capacities of the LHDs are ranging between 3 to 19 metric tons. The LHDs are globally used in underground mining, in tunneling, hydro-power and other civil construction projects. Renowned for their robust, durable and reliable characteristics, the loaders are available in various emission standards and come with data analytics and automation capabilities. Safety, ergonomics and maintainability are some of the key features of our design.

Product Payload Bucket capacity (SAE heaped) Width (at cabin) Height (above cabin) Length Power Application Spec Sheet
SLP-3H 4000 kg 1,2 m³ 2413 mm 1.700 – 1.900 mm 7345 mm 100 kW Softrock –
SLP-5 5000 kg 1,6 – 2,5 m³ 2330 mm 1.500 – 1.700 mm 7325 mm 97 kW Hardrock
SLP-6 5750 kg 3,15m³ 2662 mm 1.600 – 1.800 mm 7909 mm 105 kW Hardrock
SLP-8 8000 kg 2,8 – 5,3 m³ 2600 mm 1.550 mm 9074 mm 178 kW Hardrock
SLP-14H 14000 kg 8,5 – 9,7 m³ 3680 mm 1.880 mm 11529 mm 265 kW Softrock –
LF-3 3500 kg 1.5 m³ 1536 mm 1.850 mm 7115 mm 70 kW Hardrock
LF-7 7000 kg 2,4 – 4,0 m³ 2314 mm 2.200 mm 8800 mm 164 kW Hardrock –
LF-8 8000 kg 2,8 – 5,5 m³ 2314 mm 1.850 mm 9321 mm 188 kW Hardrock/Softrock
LF-10 NEO 10000 kg 4.6 m³ 2675 mm 2350 mm 9697 mm 240 kW Hardrock/Softrock
LF-12H 12000 kg 8,7 m³ 3390 mm 2.300 – 2.700 mm 11571 mm 265 kW Softrock –
LF-14 14000 kg 5,4 – 9,0 m³ 2700 – 3095 mm 2.477 mm 11079 mm 285 kW Hardrock/Softrock
LF-19EB 19000 kg 12,9 m³ 3369 mm 2.820 mm 13653 mm 320 kW Softrock

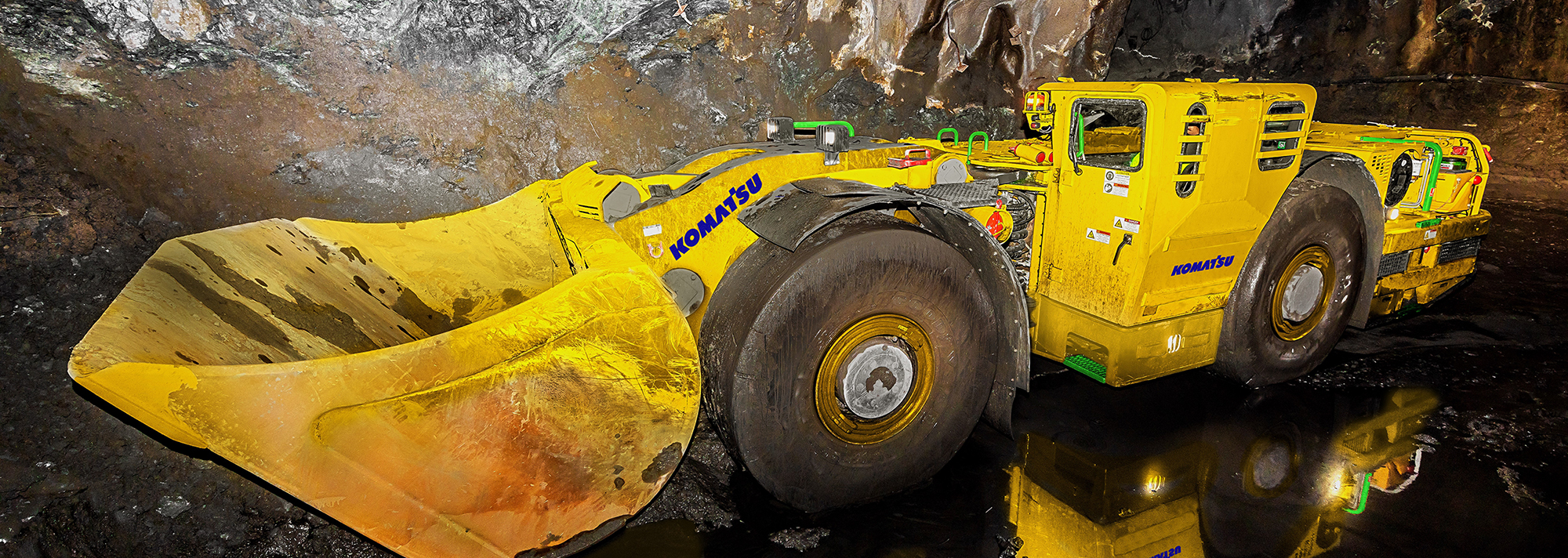

WX15 loader

WX15 (LF-14) loader, a 15 metric ton loader, versatile, robust and reliable. Made not only for hard rock applications, but equally fit for operation in tunnelling and soft rock applications.

The LF-10 NEO, a 10 metric ton loader has a z-link design and highest tipping height in its class, and largest power rating, this loader becomes one to beat. Being able to load every 30 ton class truck on the market gives it a leading edge.

The large footbox, excellent ergonomically designed cabin with great visibility makes this a loader of choice for operators.

The LF-7, 7 metric ton LHD is the largest of the narrow vein loader offering. With a z-link lift arm, various engine packages, closed and open ergonomically designed operator’s compartment, operates at maximum 25 % slope, PDS interface and data analytics

In a drive to constantly comply to stringent engine emission standards the entire loader offering has a significant amount of products available in Tier 3, Tier 4 final and Stage V packages to support industry drive towards environmental and operator friendly working environments.
