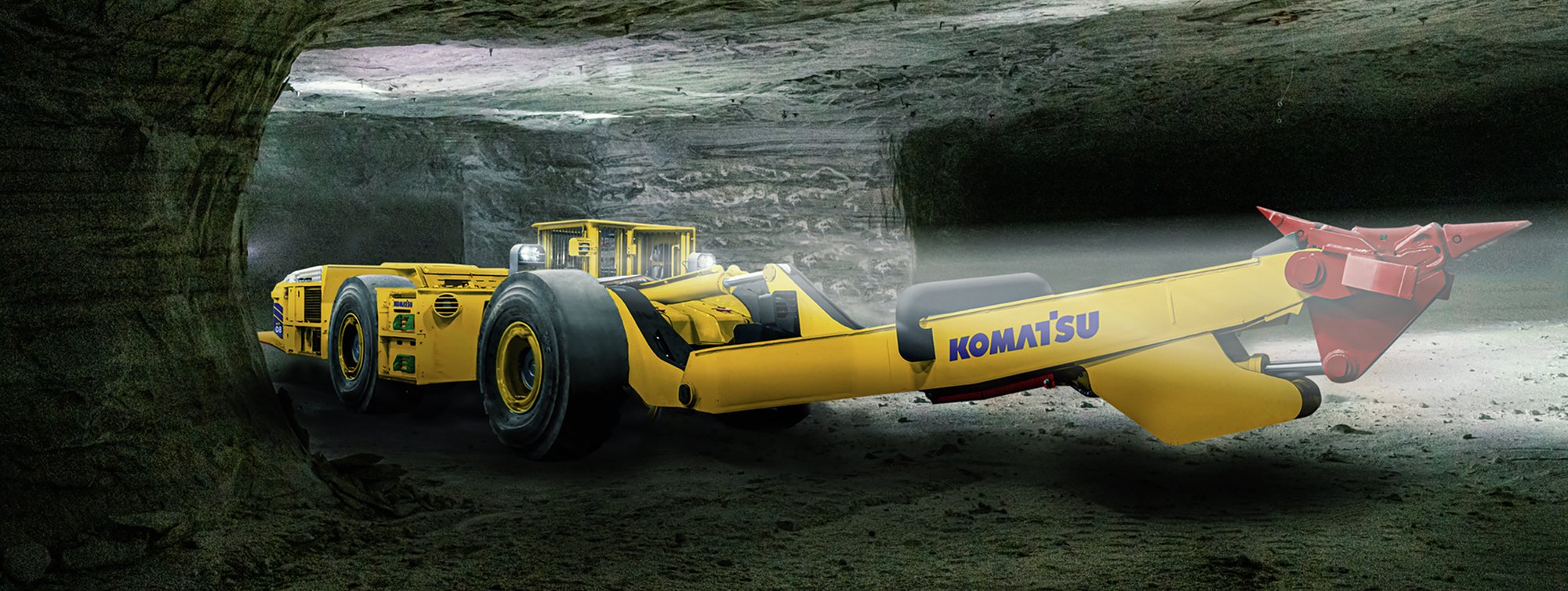

wp08-small top of page

Scalers

Based on standard LHDs we also offers shearing scalers to prepare the roof for subsequent roof support. The highly efficient working principle of our shearing scalers is combined with the proven hydrostatic drive train EDS, which allows for sensitive roof and side wall scaling as well as quick reversing.

Product KOMATSU name Arm Length Scaling Height Width (at cabin) Height (above cabin) Length Power Application Spec Sheet
LF-7.6HB WP08 6.000 / 8.000 mm 2.000 – 7.850 mm (roof) / 500 – 7.400 (wall) 3300 mm 1700 – 3300 mm 16.475 mm 180 kW Softrock
LF-12HB WP12 10.500 mm 2.200 – 9.200 mm (roof) / 750 – 8.500 (wall) 3.390 mm 2300 mm 18.857 mm 265 kW Softrock –
LF-20HB WP20 7.550 mm 3.000 – 11.000 mm (roof) / 1.000 – 10.000 mm (wall) 3375 – 3643 mm 2.600 – 2850 mm 19.009 mm 375 kW Softrock –

High productivity at low costs and excellent ergonomics resulting in satisfied operators … and satisfied miners are good miners!

The underground soft rock scaler offering have gone through rigorous testing and are continuously improved through the strong partnerships with customers where they are used.

The scalers cabins comply with the highest safety requirements and are designed for an extremely high load and provide an excellent overview in all working conditions – in particular of the scaling tool. The intelligent scaling safety system protects both the operator and machine during operation.
