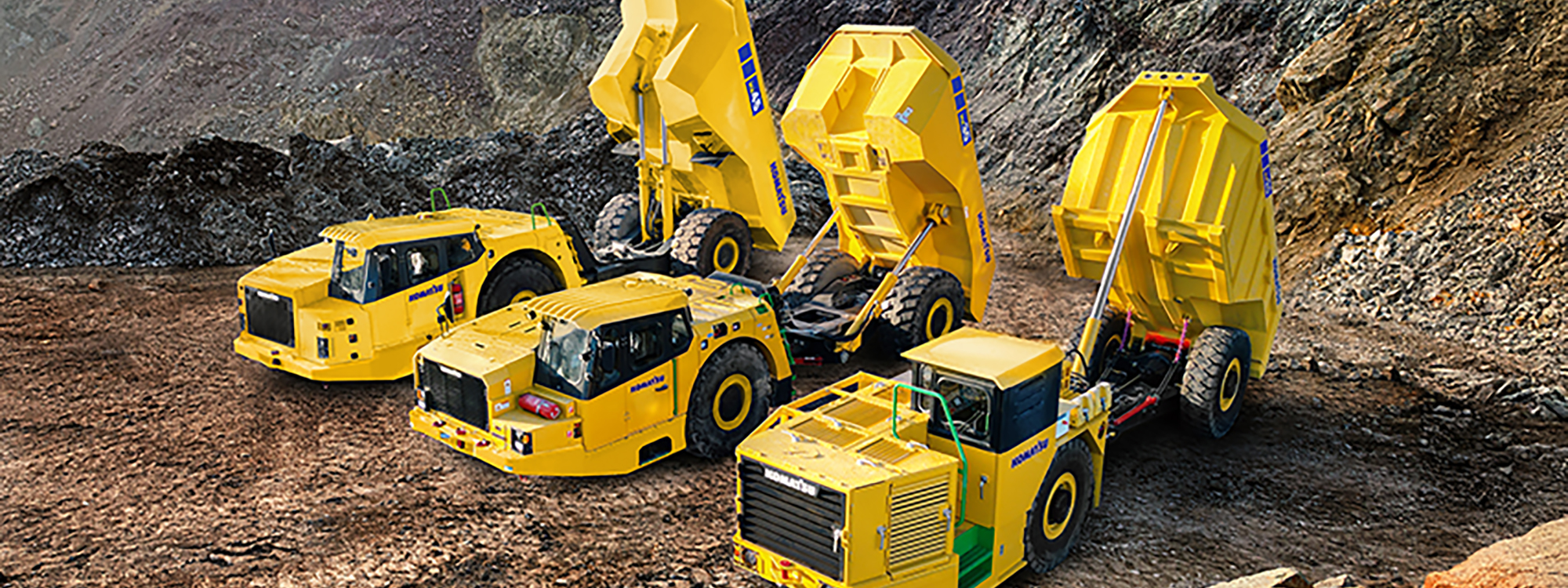

6351919_articulated-truck-hx20-hx30-hx45-2504 small top page

Trucks

Komatsu manufactures articulated dump trucks for mining and tunneling with capacities from 20 to 45 tons, and bowl sizes from 12,5 to 24m3. Our vehicles are characterized by their compact dimensions, higher comfort and better maneuverability with a swivel hinge. The vehicles have an excellent power to weight ratio to ensure high speeds even in high gradients. The particularly basic and robust design of the vehicles ensures a long service life at low operating costs)

Product KOMATSU name Payload Dump box capacity Width Height (above cabin) Length Power Application Spec Sheet
MK-A20 HX20 20.000 kg 6 – 12,5 m³ 2.200 mm 2.555 mm 9417 mm 194 – 209 kW Hardrock
HX30LP HX30LP 30.000 kg 13,5 – 15 m³ 3.500 mm 2.000 mm 10.246 mm 320 kW Hardrock –
HX30 HX30 30.000kg 15 – 16.5 m³ 2.800 mm 2.600 mm 10.246 mm 320 kW Hardrock
SK-A30 SK-A30 30.000 kg 21,5 m³ 3.550 mm 2.900 mm 11172 mm 300 – 320 kW Softrock –
MK-A35 HX35 35.000 kg 13 – 23,0 m³ 3.200 mm 2.897 mm 10835 mm 300 – 320 kW Hardrock
MK-45 HX45 45.000 kg 19 – 23,0 m³ 3.060 mm 2.699 mm 10885 mm 450 – 460 kW Hardrock

The HX45 (MK-45) dump truck is a Red dot award winning innovative product.
A perfect partner to the WX15 (LF-14) loader

The HX45 is an innovative 45 metric ton underground hard rock mining truck. As customers stive to constantly improve operations and increase productivity and profitability Komatsu is constantly working on improving existing product designs and developing new products to be able to provide the most fit-for-purpose products to the industry.

In a drive to constantly comply to stringent engine emission standards the entire Komatsu truck offering is now available in Tier 3, Tier 4 final and Stage V packages to support industry drive towards environmental and operator friendly working environments.
